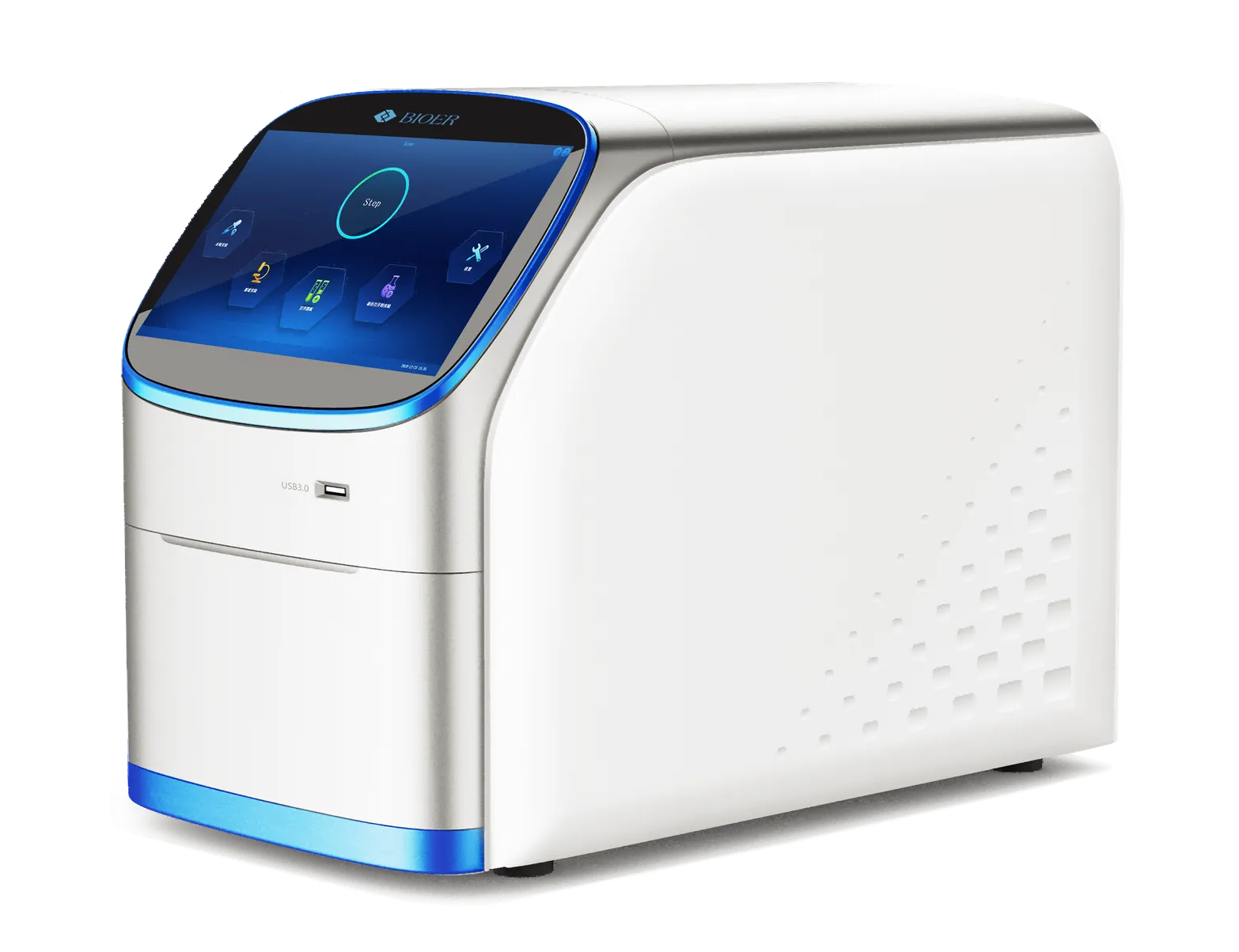

QuantGene 9600
QuantGene 9600 adopts the extremely mature thermoelectric refrigeration technology of Bioer Technology, equipped with a new light source and light path design, using a unique constant current power supply and 6 zone independent temperature control mode, on the basis of accurate and rapid fluorescence quantitative analysis, taking into account more user needs. The products cover quantitative/qualitative analysis, SNP analysis, melt curve analysis, HRM analysis, multiple gene detection and many other analysis, which fully meet the detection needs of scientific research, clinical and other users.
Product Description
QuantGene 9600 adopts the extremely mature thermoelectric refrigeration technology of Bioer Technology, equipped with a new light source and light path design, using a unique constant current power supply and 6 zone independent temperature control mode, on the basis of accurate and rapid fluorescence quantitative analysis, taking into account more user needs. The products cover quantitative/qualitative analysis, SNP analysis, melt curve analysis, HRM analysis, multiple gene detection and many other analysis, which fully meet the detection needs of scientific research, clinical and other users.
Product Features
- Top reading, simultaneously detect the 96-well fluorescence signal, No time difference.

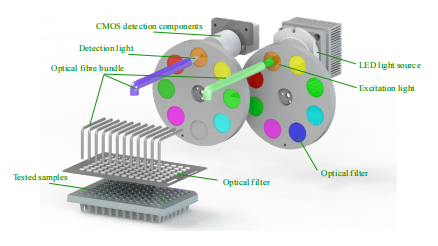

- Optical fiber bundle conduction collects fluorescence signals, reduces light transmission loss, eliminates edge optical path difference and edge effect and eliminates the need for calibration.
- Using a new generation of high-sensitivity, high-resolution CMOS detector.
- Adopting a double filter wheel design, it can easily handle secondary excitation detection experiments.
- Using long-life semiconductor refrigerators, the life is 3 times longer than that of traditional TE chips.
- Adopting 6-zone independent temperature control, the temperature control is more precise and the gradient selection is more free.
- 10.1 Full-color touch screen control, simple UI design, remote operation and monitoring via APP and other mobile terminals.
- The software has powerful analysis functions and optional Chinese and English operation interfaces.
Application Field
Gene Expression Analysis
Pathogen Detection
Genetic Testing
Environmental Monitoring
Food Safety
Related Products
You May Also Like

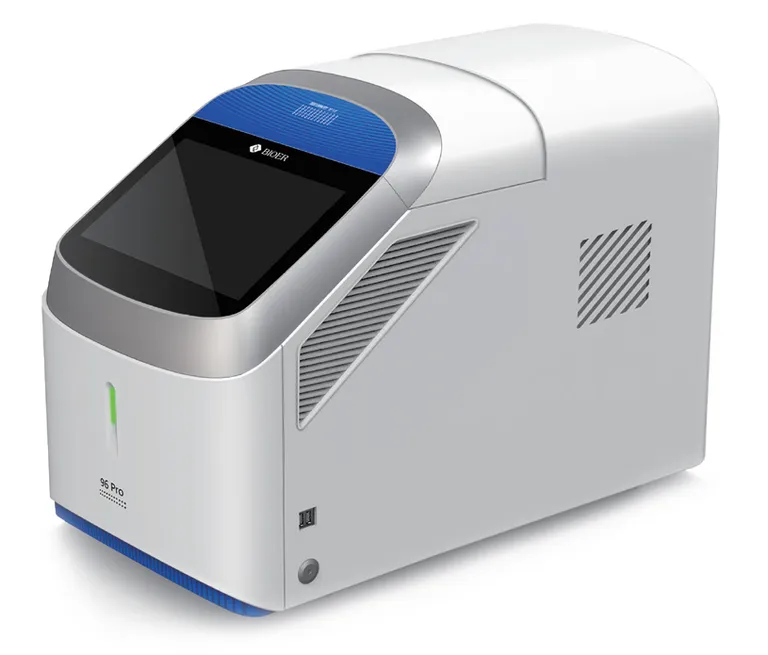

LineGene 9600 Pro
This product is an improved and upgraded version based on the original LineGene 9600 Plus (FQD-96A) instrument. It continues to employ the bottom scanning method, effectively enhancing detection sensitivity. It utilizes a spatial optical path with six channels for simultaneous scanning, requiring only 7 seconds for all six channels, significantly saving operational time. Furthermore, the optical signal reception now employs PD (Photodiode) instead of PMT (Photomultiplier Tube).

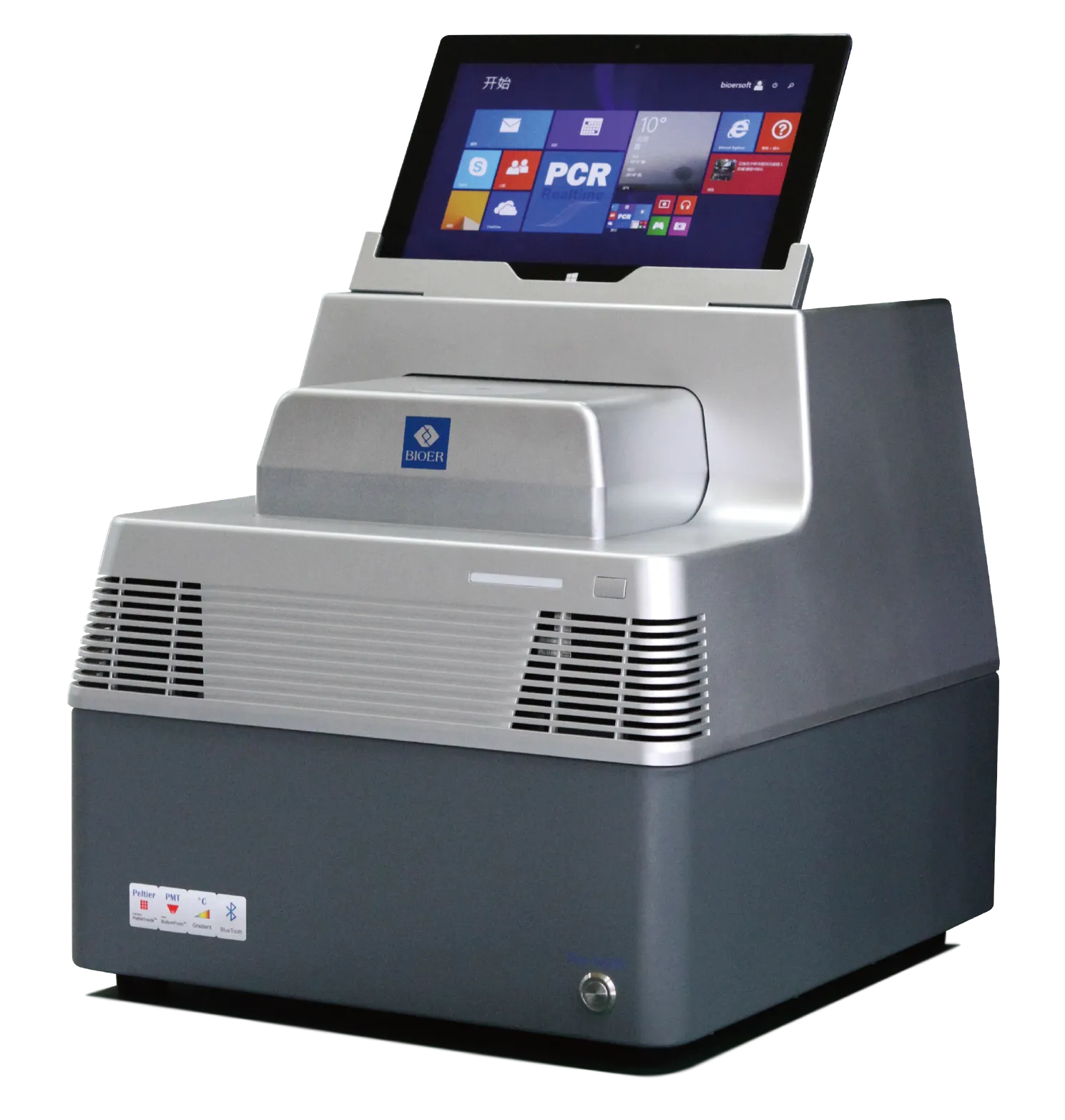

LineGene 9600 Plus
As a classic product series of Bioer Technology, LineGene series, LineGene 9600 Plus adopts customized long-life semiconductor cooling chips, high-precision optical filters, high-temperature-resistant professional optical fibers, and other high-precision cutting-edge components. It is equipped with a new global wide-voltage switch power supply, unique modular heat dissipation technology, and patented bottom detection technology, giving the product faster temperature ramp rates, better temperature control accuracy and uniformity, as well as stronger and more stable detection performance. The product fully meets the testing needs of various users in scientific research, clinical applications, and more, assisting users in achieving absolute quantification/multiplex quantification analysis, qualitative analysis, SNP analysis, melt curve analysis, HRM analysis, and many other genetic testing.

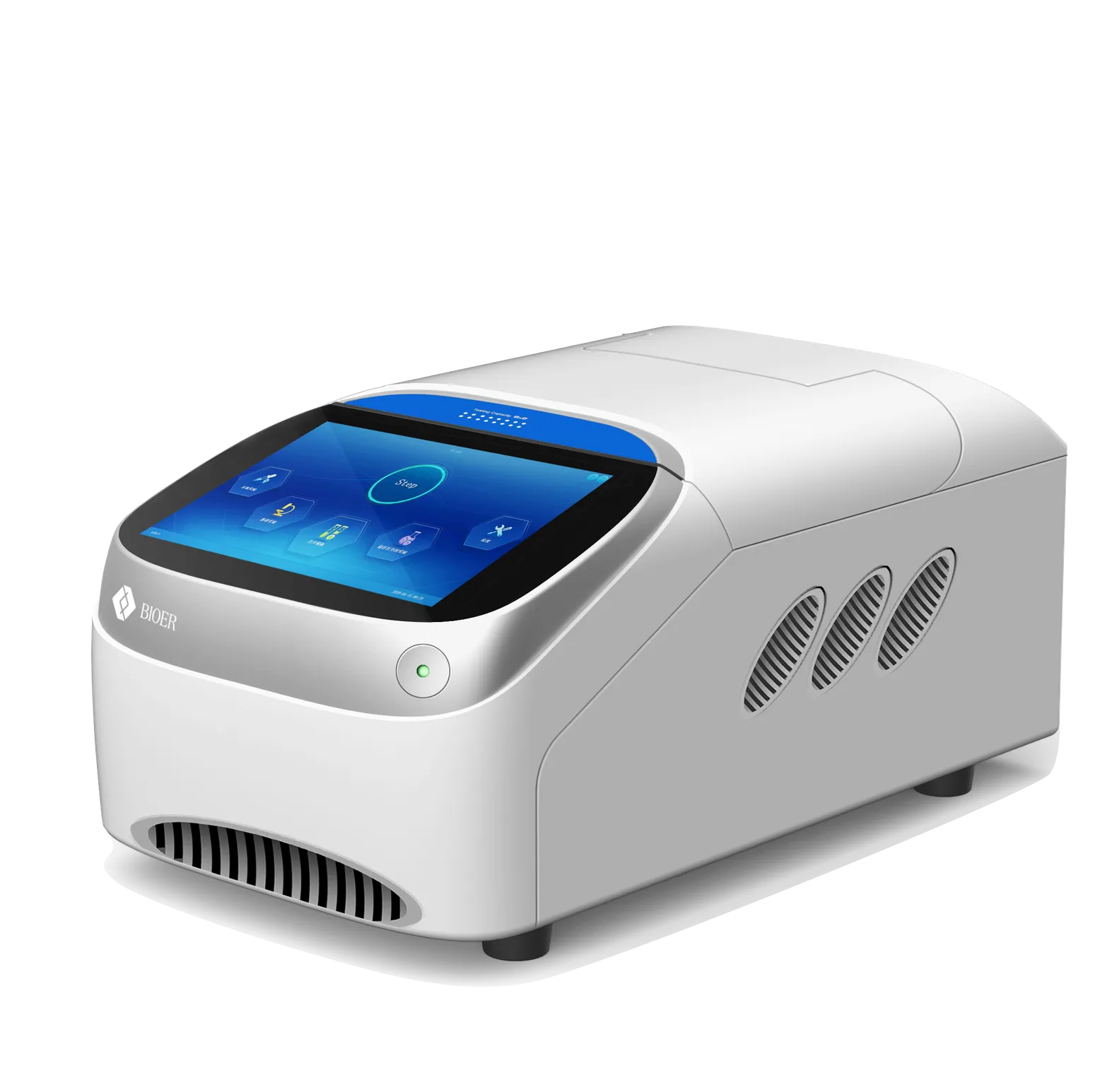

LineGene Mini S
